Titanium

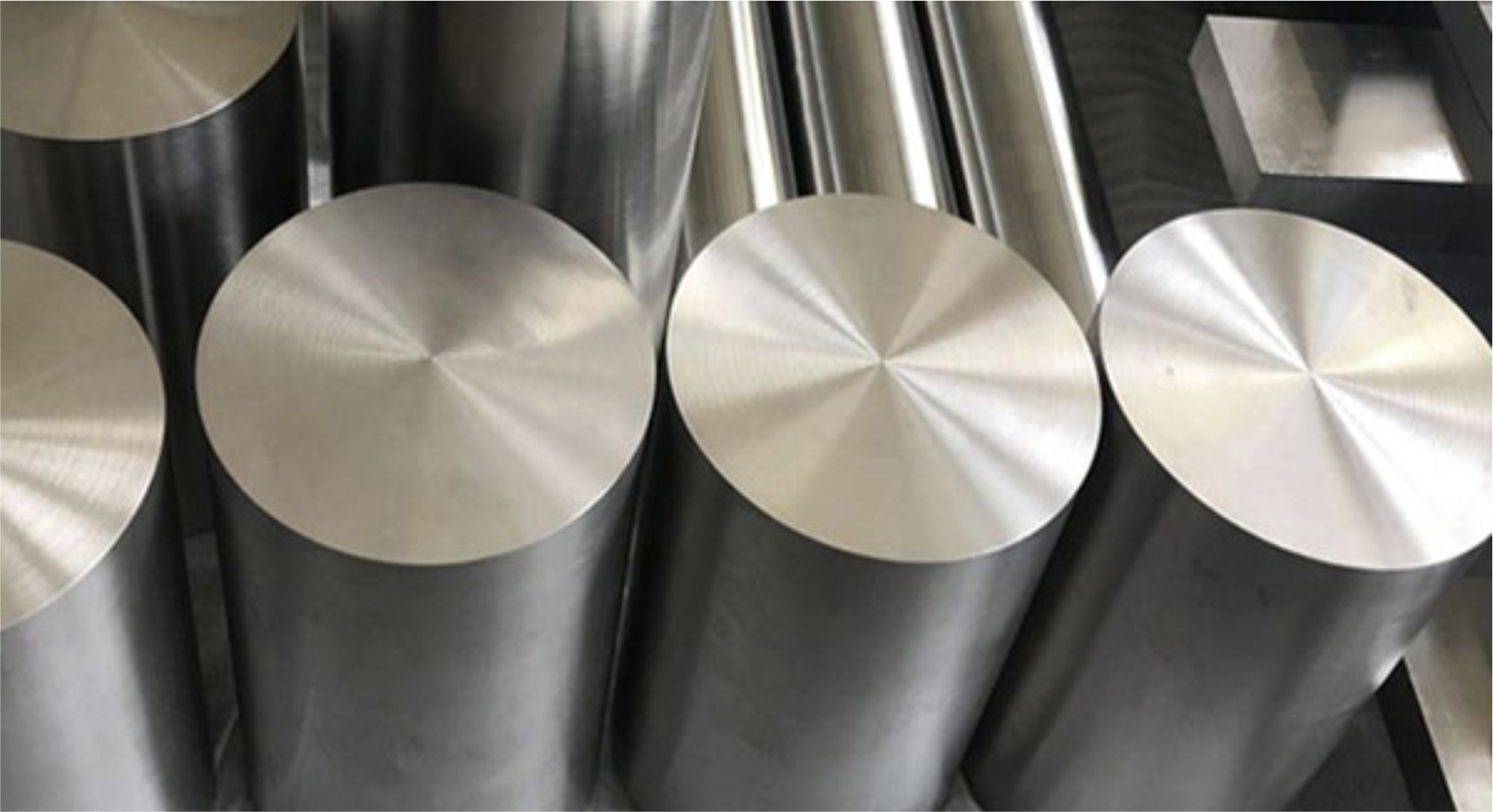

Master Metal supplies high-quality Titanium and Titanium Alloys known for their exceptional strength-to-weight ratio, corrosion resistance, and biocompatibility. We offer grades like Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, and Grade 12, suitable for both industrial and medical applications. Titanium is extensively used in aerospace, marine, chemical processing, medical, and defense industries. Our titanium products are available in the form of sheets, plates, rods, bars, tubes, pipes, and fittings, conforming to ASTM B265, B348, and B861 standards. With superior durability and performance in extreme environments, Master Metal delivers titanium solutions trusted worldwide.
Specification Of Hastelloy Pipe Fittings
| Grade | Composition | Key Properties | Common Applications |
|---|---|---|---|
| Grade 1 | Pure titanium (99.5%) | Excellent corrosion resistance, high ductility | Chemical processing, desalination, marine engineering |
| Grade 2 | Pure titanium (99.2%) | Good strength, corrosion resistance, formability | Aerospace, automotive, medical devices, marine |
| Grade 3 | Pure titanium (99.5%) | Higher strength than Grade 2, good corrosion resistance | Aerospace, pressure vessels, heat exchangers |
| Grade 4 | Pure titanium (99.0%) | Highest strength of commercially pure grades | Aerospace, military, chemical processing |
| Grade 5 | Ti-6Al-4V (90% Ti, 6% Al, 4% V) | Excellent strength, corrosion resistance, weldability | Aerospace, medical implants, automotive, structural parts |
| Grade 9 | Ti-3Al-2.5V (90% Ti, 3% Al, 2.5% V) | Improved formability, moderate strength and corrosion resistance | Aerospace, sporting equipment, marine |
| Grade 23 | Ti-6Al-4V ELI (Extra Low Interstitials) | High strength, biocompatible, for medical use | Medical implants, aerospace, high-performance applications |
Key Points:
- Grades 1–4 are commercially pure titanium, offering increasing strength with decreasing ductility.
- Grade 5 (Ti-6Al-4V) is the most widely used titanium alloy for its excellent mechanical properties.
- Grade 23 is a medical-grade version of Grade 5 with enhanced biocompatibility.
- Grade 9 provides a good balance of strength and formability, often used in tubes and piping.
